Details

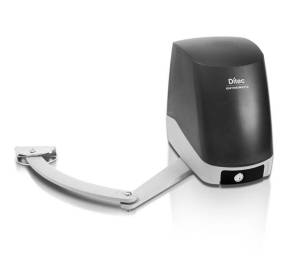

FACIL3EH articulated arm swing gate operator, designed for use Residential, the maximum size of the wing/arm can be, 2,3 metres, the maximum weight of the swing may be 200 kg, the torque 200 Newton-metre, the power requirements of the device is 230V AC, the duty cycle is 50 %, operating frequency is 433 MHz, pedestrian entrance function: Supported, Passage sensor: Supported, LCD screen Supported, IP rating level IP54, control inputs: Mains supply, opening, stepping, pedestrian opening, stop, reverse contact,control outputs: blinker output, gate operator 1, gate operator 2, electric lock, 24V DC/ 0,5A auxiliary power output,
