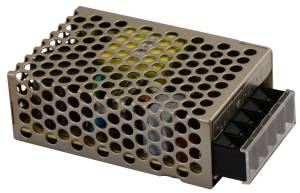

Mean Well RS-25-24 Power supply
Product ID: tapRS-25-24
Manufacturer: Mean Well
Built-in, 24 V DC, 1,1 A, 25 W, 1 pair of output terminals.
Warranty: 3 year(s)
Detailed tech specs »
Details
Mean Well Power supply, design: Built-in, input / output: AC - DC, rated input voltage: 230 V AC, input voltage range: 88 - 264 V AC / 125 - 373 V DC, rated output voltage range: 24 V DC, rated output current: 1,1 W, overload protection, overvoltage protection.

Gross list price:

Ft 4,779

Detailed tech specs
Category
Power supply
Housing
Built-in
Input / Output
AC - DC
Rated input voltage
230 V AC
Input voltage range
88 - 264 V AC / 125 - 373 V DC
Rated output voltage
24 V DC
Output voltage range
21,6 - 26,4 V DC
Rated output current
1,1 A
Output Power
25 W
Number of outputs
1 pair of output terminals
Error reporting
AC / DC OK
Error reporting method
LED
Overload protection
Short-circuit protected
Overvoltage protection
Supported
Cooling
Passive
Operating temperature
-20 ~ +70 °C
Operating max. humidity
20 - 90% non-condensing
Weight
0,2 kg
Dimension
79 x 28 x 51 mm
