The PoE 802.3/at standard is a technology that allows devices to receive the power they need to operate over the Ethernet data network, up to a maximum of 30 W.
SFP port
SFP uplink port: the product has an optical SFP uplink port.

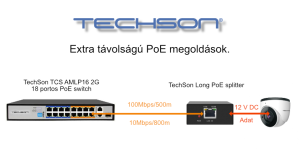

PoE EXTEND 800
In this mode, devices connected to the PoE ports can be powered and data supplied up to 800 meters away, using an additional product such as the TechSon PoE splitter. For current details, please refer to the product datasheet.
AI VLAN
In this mode, all communication between ports except uplink ports is blocked, which effectively handles broadcast congestion and improves network performance.
AI QOS
When the device is overloaded - video streams are processed in priority.
Watchdog
The switch automatically detects the operational status of the powered device, and if it detects any abnormal operation in the data traffic, the switch will automatically reboot the connected device.
Rack mount
Rack-mounted design: the product can be mounted in a rack mounted cabinet on request.
Details

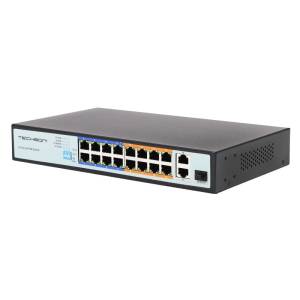

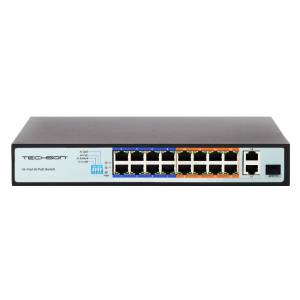

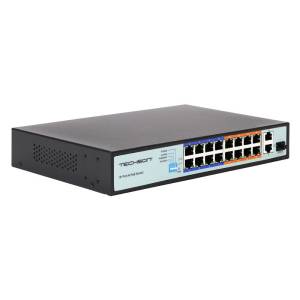

Techson TCS AMLP16 2G 18 ports PoE switch, device with 17 ports, for indoor use, device type is 13" rack mountable support the following PoE standard802.3af/at, Unmanaged, the switch power requirments is 240 V AC,support the folloing AI VLAN mode,AI Extend mode,AI PoE mode,AI QoS mode AI functions the maximum bandwith is 1 Gbps, PoE ports number is 16, maximum PoE budget is150 W, 10/100 LAN pors number is 16, Uplink ports number is 2, SFP ports number is 1, the switch backplane bandwith is 7.2 Gbps, the switch packet forwarding rate is 5.36 Mpps,
