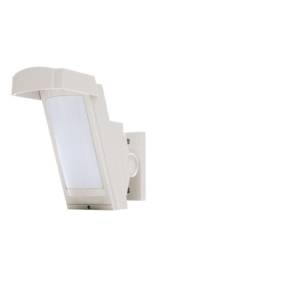

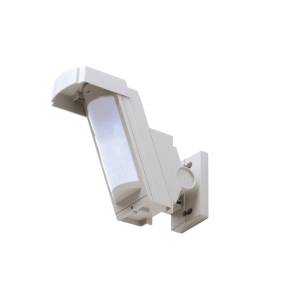

Optex HX-40DAM(C) - wired dual-technology (PIR+MW) motion detector

Product ID: opx_HX-40DAM(C)

Optex HX-40DAM(C) - outdoor, wired dual-technology (PIR+MW) motion detector - PIR+MW

Warranty: 2 year(s)

Detailed tech specs »

Details

Optex Outdoor, high (2.5-3 m), combination sensor (PIR+MW), IR anti-mask, 12 m, 85° viewing angle

Gross list price:

Ft 109,240

Download PDF

Detailed tech specs

Sensor type

Passive Infra + MW

Characteristics

Combined motion sensor

IP protection

IP55

Installation height

2,5 m - 3 m

Viewing angle

85°

Installation platform

Outdoor

Fitting method

Wired

Properties

Obfuscation protection, Pet immunity

Alarm output

N.C. 28 V DC 0,2 A max.

Tamper switch

N.C. 28 V DC 0,1 A max.

Current consumption

50 mA

Operating temperature

-20°C / +60°C

Coverage

4 m x 5,5 m x 9 m

Other

N.C. 28 V DC 0,1 A max. Antimaszk hiba kimenet

Size

92 x 197,5 x 148 mm

Weight

700 g

Range

12 m

Power supply

9,5 - 18 V DC

Detection speed

0,3 - 1,5 m/s
