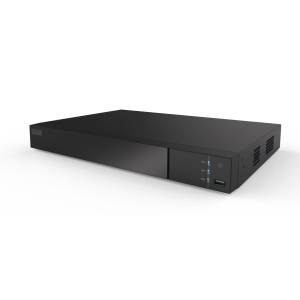

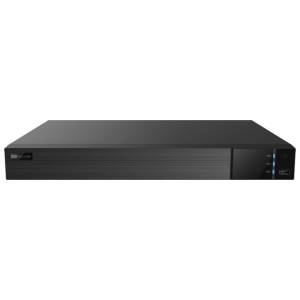

Videodekóder, H.265, 2xHDMI 4K, 2x Gigabit LAN, Hang be/ki, 8 riasztás bemenet, 4 relé kimenet, SmartCenter nagyvállalati rendszerhez

Support standard H.264/H.265 video decoding
Support 2 CH HDMI output, support Ultra HD 4K output
Support 4 CH 8MP/5MP or 8 CH 4MP/3MP/1080P/720P or 32 CH D1 real time decoding
Support ONVIF2.6 protocol
System parameters can be configured via the Web Server
Support device cascade (master-slave mode, master forwarding)
Support stitching, window opening and roaming
2 x 10/100/1000Mbps RJ45 Ethernet port, support load sharing

RÉSZLETEK:

Decoding Format H.265 HP/MP/BP、H.264 HP/MP/BP
OS Embedded Linux
Video Output HDMI x 2
HDMI1 : 3840×2160/1920×1080/1280×1024
HDMI2 : 1920×1080/1280×1024
Decoding Resolution 8MP、5MP、4MP、3MP、1080P、960P、720P、WD1、D1、CIF
Decoding Capacity 4 CH 8MP/5MP real-time or 8 CH 4MP/3MP/1080P/720P real-time or 32 CH ≤D1 real-time
Frame Rate 1-25FPS/CH (PAL), 1-30FPS/CH (NTSC)
Multiple Display Mode 1/4/9/16/25/36
Window roaming Support stitching, window opening and window roaming under cascade mode
Audio Interface Audio input × 1, Audio output × 1, support two-way talk
Communication Interface 2 x 10/100/1000Mbps RJ45 Ethernet port, support load sharing and high available
Alarm Interface Alarm in x 8, Alarm out x 4
USB Port USB3.0 x 1, USB2.0 x 2
Power Supply DC 12V
Working Temperature -20 ~ 50°C
Dimension (mm) 380 ( W ) x 268 ( D ) x 45 ( H )
