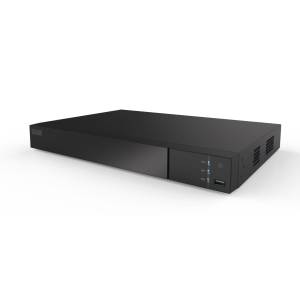

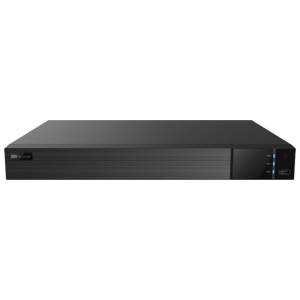

TCD C5004 decoder
Termékkód: TCDC5004
Gyártó: Techson
TechSon Videodekóder, Mátrixvezérlő, H.265, 4xHDMI (2x4K, 2xFHD), 2xGigabit LAN, Hang be/ki, 8 riasztás bemenet, 8 relé kimenet, SmarCenter nagyvállalati rendszerhez
Termékgarancia: 3 Év
Részletes specifikáció »
Leírás

Videodekóder, H.265, 4xHDMI (2x4K, 2xFHD), 2xGigabit LAN, Hang be/ki, 8 riasztás bemenet, 8 relé kimenet, SmartCenter nagyvállalati rendszerhez





Decoding & Display
4*HDMI@1080P; HDMI1 and HDMI3 support 4K
4*VGA output, 4*BNC output
Support PS, RTP,TS,ES package format(in platform running mode)
Support NTSC&PAL video format
H.265 HP/MP/BP and H.264 HP/MP/BP
4CH 8MP/5MP@30fps or 16 CH 4MP/3MP/2MP/1080P/720P@30fps or 64CH D1 or lower
G.711A/G.711U
1 CH audio input; 4 CH audio output
1 CH talkback
Decoding Control
Support live view and playback decoding
1/4/9/16 screen display mode
Splicing, picture-in-picture, roaming
View cameras or camera groups in sequence
Stream Mode
A&V streams can be acquired actively and passively
A&V streams can be directly acquired from TechSon IPC/DVR/NVR by SDK private protocol
A&V streams can be acquired from NVMS platform or encoding devices by RTSP/RTP protocol
A&V streams can be acquired from IPC by ONVIF protocol
Device Management
Support multi-level device control(Master-slave mode)
A maximum of 64 decoders can be manageable
Access
Provide HTTP API protocol to third-party platform
Support platform running mode and device running mode
Operation and Maintenance
Support device search
Support WEB client access, configuration and management
Support time zone, time and date settings
Support IP address, subnet mask and gateway settings
Support data port and HTTP port settings
Support data backup and restoration
Support remote reboot and one-button reset
Support online and U-disk upgrade
Support dual gigabit Ethernet ports, load balancing


RÉSZLETEK:


OS
Embedded Linux
Compression Format
H.265 HP/MP/BP、H.264 HP/MP/BP
Video Input
HDMI×1: 1920×1080 / 1600×1200/1680×1050/1440×900/1400×1050/1366×768/1280 ×1024/1280×960/1280×800/1280×720/1152×864/1024×768/800×600
Video Output
HDMI×4:3840×2160(odd number ports supported) /1920×1080/1280×1024
VGA×4: 1920×1080/1280×1024
BNC×4:CVBS output
Frame Rate
1-50FPS/CH (PAL),1-60FPS/CH (NTSC)
Decoding Resolution
8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, WD1, D1, CIF
Decoding Capability
4CH 8MP/5MP@30fps or 16 CH 4MP/3MP/2MP/1080P/720P@30fps or 64CH D1 or lower
Screen display mode
1/4/9/16/25/36
Screen Splicing mode
1×2,2×1,2×2
Audio output
RCA×4
Talkback
Audio input ×1, audio output×1,3.5mm audio interface(level:2.0Vp-p,1KΩ)
Network interface
Gigabit Ethernet port ×2, load balancing and hot standby
Alarm interface
Alarm input ×8; alarm output ×8
Serial Ports
RS485×1, RS232×1
USB interface
USB3.0×1,USB2.0×1
Power Supply
DC12V
Power Consumption
40W
Dimensions(mm)
380 ( W ) x 268 ( D ) x 45 ( H )
Weight
2 KG
Working Environment
Temperature: -20℃~50℃; RH Humidity: 5%~95%(non-condensing)

Bruttó listaár:

425 613 Ft
